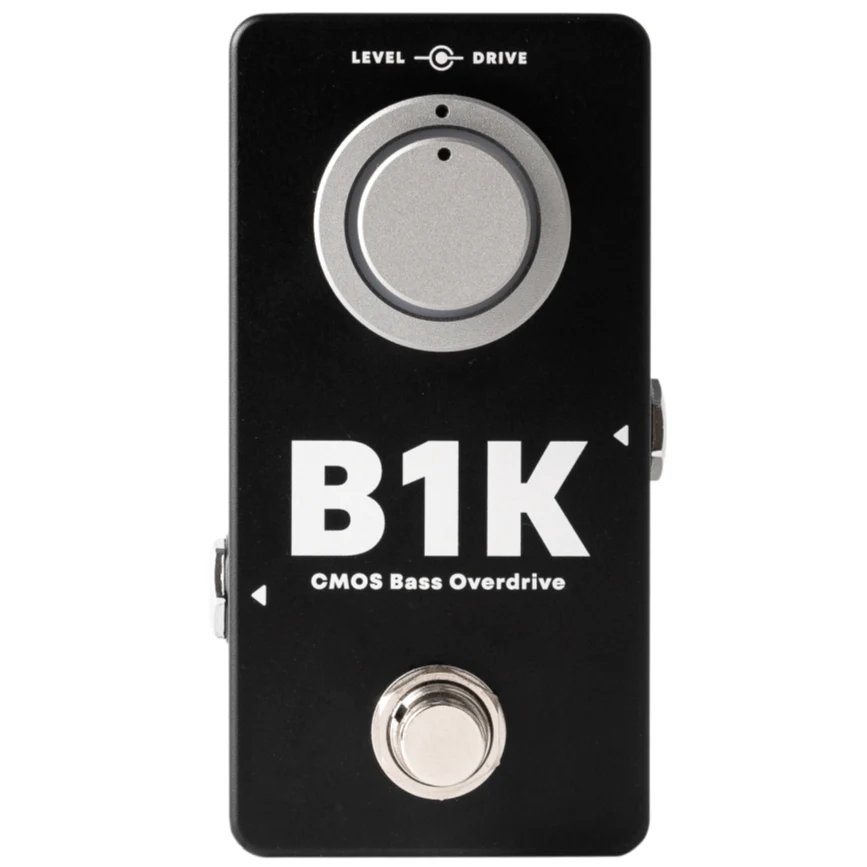

Darkglass B1K Microtubes B1K Mini Pedal

The Microtubes B1K is a phenomenal tribute to one of our most legendary distortion circuits in a compact and intuitive format. We are proud to introduce our Microtubes B1K distortion pedal, the first of its kind from an all-new lineup.

Features

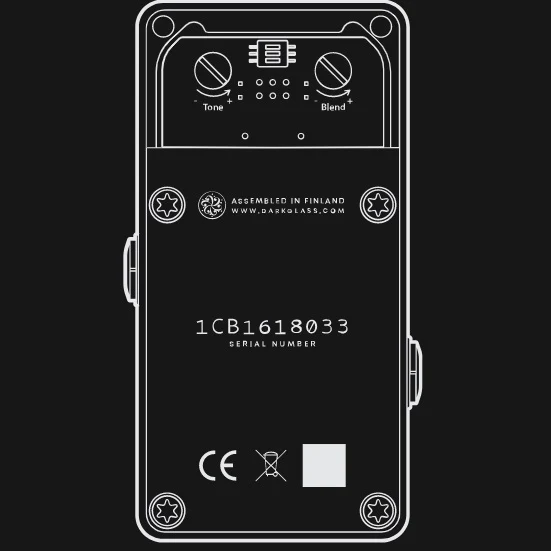

• Back features
• Blend: Mixes the clean input signal with the overdriven signal.
• The clean signal is fixed at unity gain, while the volume of the overdriven signal is set by the Level knob, allowing for fine control of the blend ratio.
• Turn clockwise to blend in the clean signal.
• Tone: Controls the high-frequency content of the sound. A variable low pass filter from 3 kHz to 8 kHz. Turn CCW for a brighter sound.
• Grunt: Provides a low-end boost to massively thicken your sound when engaged.
• MBoost: Gives a subtle 6 dB boost from 300 Hz to 1 kHz to help you cut through the mix.

Specs

• Level: Sets the volume of the overdriven signal.
• Drive: Sets the amount of saturation in the overdriven signal.
• Dimensions

• Width: 50 mm /2″
• Length: 45 mm/ 1,75″
• Height: 100 mm / 4″
• Weight: 205 g / 0,45 lb
• Warning

• The Microtubes B1K has a current draw of 30 mA. Only use a regulated 9V DC adapter with a center-negative plug.
• Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage your unit, voiding the warranty.
