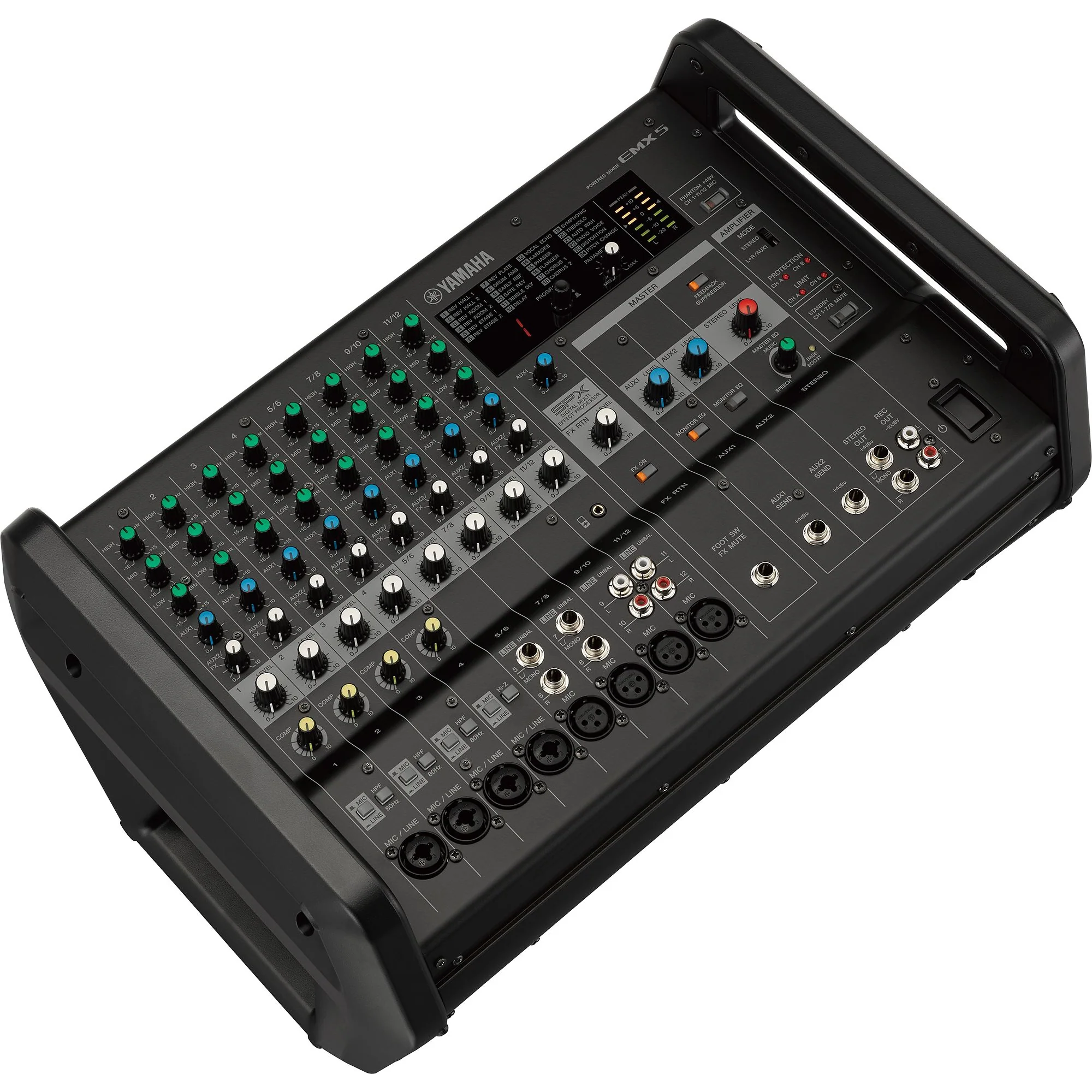

Yamaha EMX5 Powered Mixer

The new EMX5 was designed specifically for musicians, performers, or public speakers who put a premium on sound quality and convenient operation, and are ready to take their sound reinforcement to the next level. Despite their compact construction, only speakers and a microphone are required to configure a fully functioning, extremely portable, and reliable sound system with all the tools you need to mix, process, and deliver your audio just the way you want, anywhere you want.

Box-type robust and portable powered mixer featuring high efficiency power amplifier of 630W and mixer with comprehensive effects, 1-Knob Master EQ™ and built-in feedback suppressor.

Features

• 2x 630W [4Ω], 2x 460W [8Ω] (1kHz THD+N less than 10% CEA2006)
• Powerful & High Efficiency Class-D Amplifier

• 12 Line Inputs (8 mono + 4 stereo)
• High-Z input (channel 4) to connect guitars or basses directly
• 1-Knob Master EQ™
• Onboard Feedback Suppressor
• Comprehensive, professional 24 different effects
• Metal chassis for extended operation and robustness
• Large handles for extreme portability and protection
• Universal power supply eliminates concern on power fluctuations
• Optional rack-mount kit available

Specs

• I/O
• Inputs TOTAL 12 channels : 8 Mono (MIC/LINE), 4 Stereo (LINE)
• Phantom power #ERROR!
• Outputs SPEAKERS [A, B], AUX1 SEND, AUX2 SEND, STEREO OUT [L, R], REC OUT [L, R]
• Control and others FOOT SWITCH : Effect Mute on/off
• Bus Stereo: 1, AUX: 2 (Including FX)
• Input Channel Function
• PAD 30 dB (CH1-4)
• Hi-Z Supported (CH4)
• HPF 80 Hz, -12 dB/oct. (CH1–3)
• COMP 1-knob COMP (CH1–4)
• EQ HIGH 10 kHz +15 dB / -15 dB (Shelving)
• EQ MID 2.5 kHz +15 dB / -15 dB (Peaking)
• EQ LOW 100 Hz +15 dB / -15 dB (Shelving)
• On-board processors DSP SPX Algorithm 24 programs, Feedback suppressor, Master EQ, Monitor EQ
• On-board amplifiers
• Maximum output power @4ohms 1kHz THD+N less than 10% (CEA2006) : 630 W + 630 W, 1kHz THD+N less than 1% (CEA2006) : 500 W + 500 W
• Maximum output power @8ohms 1kHz THD+N less than 10% (CEA2006) : 460 W + 460 W, 1kHz THD+N less than 1% (CEA2006) : 370 W + 370 W
• Level Meter 2 × 7 points LED meter (-20, -10, -6, 0, +6, +10, PEAK)
• Frequency response Input to SPEAKERS : +1 dB/-3 dB (40 Hz to 20 kHz), Input to STEREO OUT, AUX1 SEND, AUX2 SEND : +0.5 dB/-1 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz
• Total harmonic distortion Input to SPEAKERS: 0.1% @ 10 W (40 Hz to 20 kHz), 0.05% @ 50 W (1 kHz) ; Input to STEREO OUT, AUX1 SEND, AUX2 SEND: 0.03% @ +14 dBu (20 Hz to 20 kHz), 0.007% @ +20 dBu (1 kHz), (THD+N, measured with 22 kHz LPF)
• Hum & noise level
• Equivalent input noise -117 dBu (Noise is measured with A-weighting filter)
• Residual output noise Input to SPEAKERS : -70 dBu(40Hz to 20kHz, STEREO MASTER LEVEL: min); Input to STEREO OUT, AUX1 SEND, AUX2 SEND : -82dBu(20Hz to 20kHz, STEREO MASTER LEVEL: min) (Noise is measured with A-weighting filter)
• Crosstalk -85 dB (1 kHz, Measured with 1 kHz band pass filter)
• Protection circuit
• Load protection DC-fault
• Amplifier protection Over heat protection, Over current protection, Integral power protection
• Power supply protection Over heat protection, Over current protection
• Power requirements AC 100-240V, 50Hz/60Hz
• Power consumption 42 W (Idle) / 210 W (1/8 Power)
• Dimensions
• W 465 mm (18 5/16")
• H 308 mm (12 1/8")
• D 325 mm (12 13/16")
• Net weight 9.5 kg (20.9 lbs)
• Accessories Owner’s Manual, Technical Specifications, AC power cord (2.5 m)
• Options Foot switch: FC5, Rack-mount brackets: RK-EMX7
• Others Operating Temperature : 0 to +40℃
