Sennheiser XSW-D-VOC-SET Portable Wireless Vocal Set

Digital wireless handheld system with cardioid dynamic vocal microphone. A wireless tool to empower your creativity by allowing you to roam free.

One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. Equipped with an XS 1 microphone, this elegant solution makes wireless vocals easier than ever before while maintaining a reliable connection.

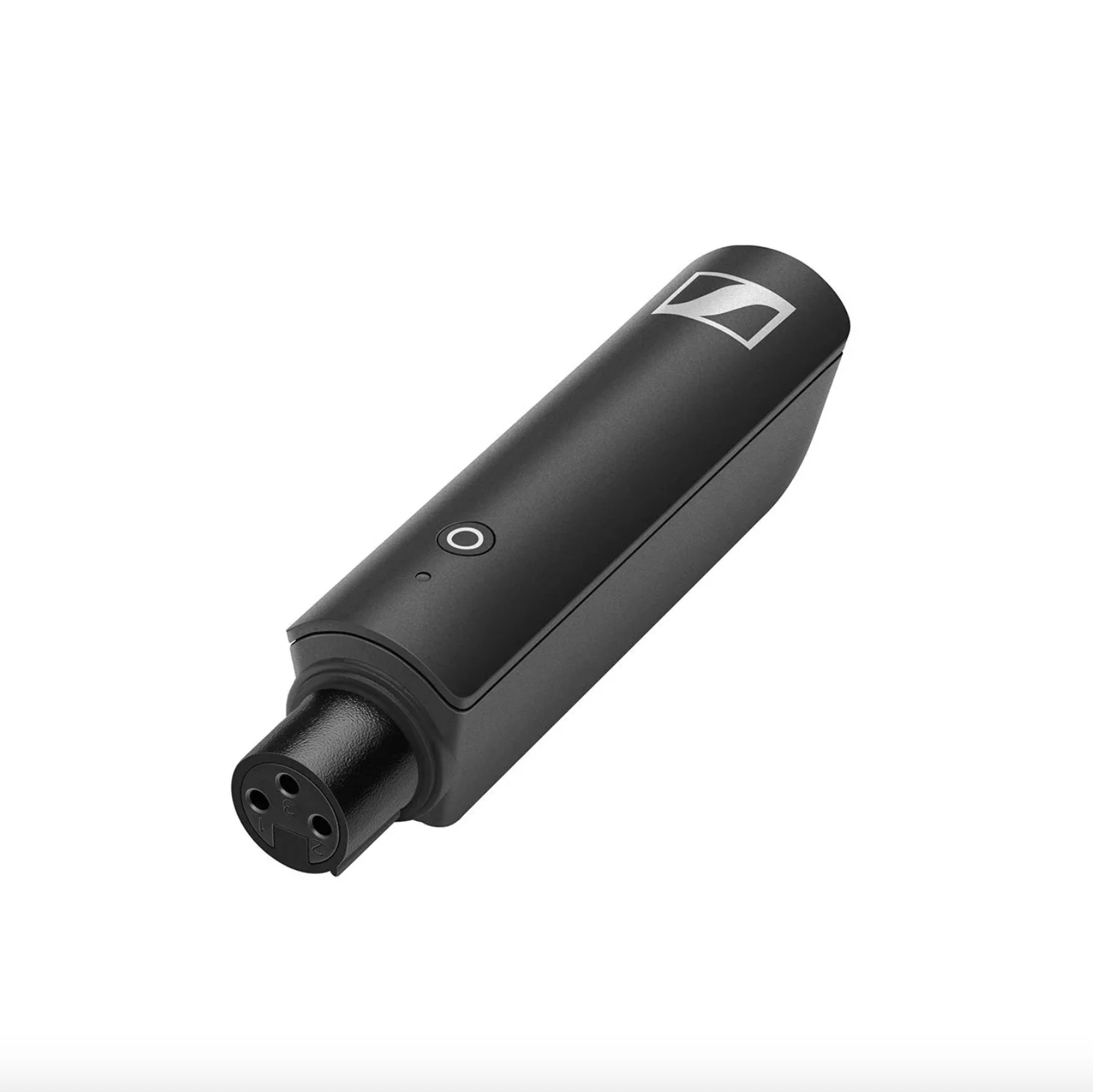

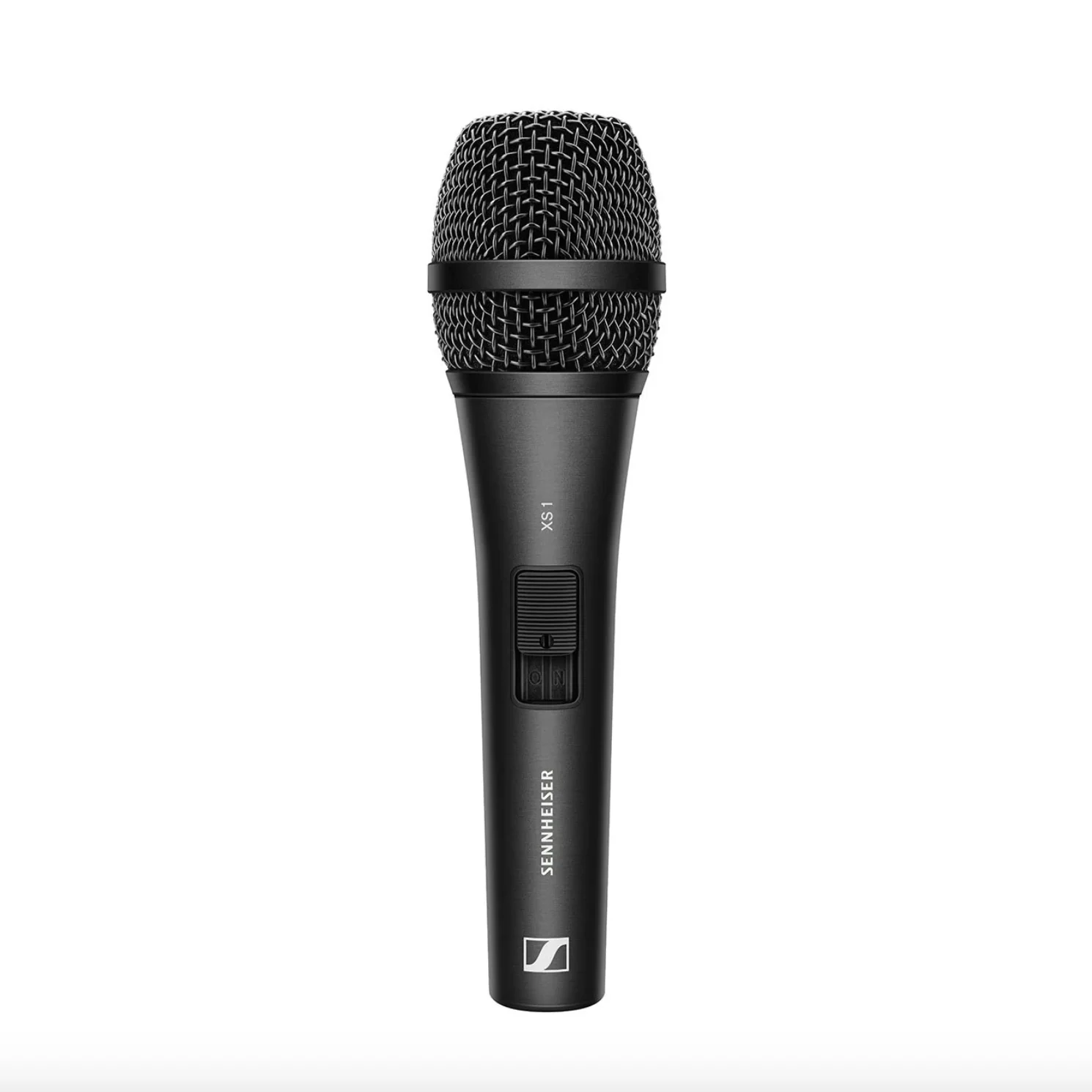

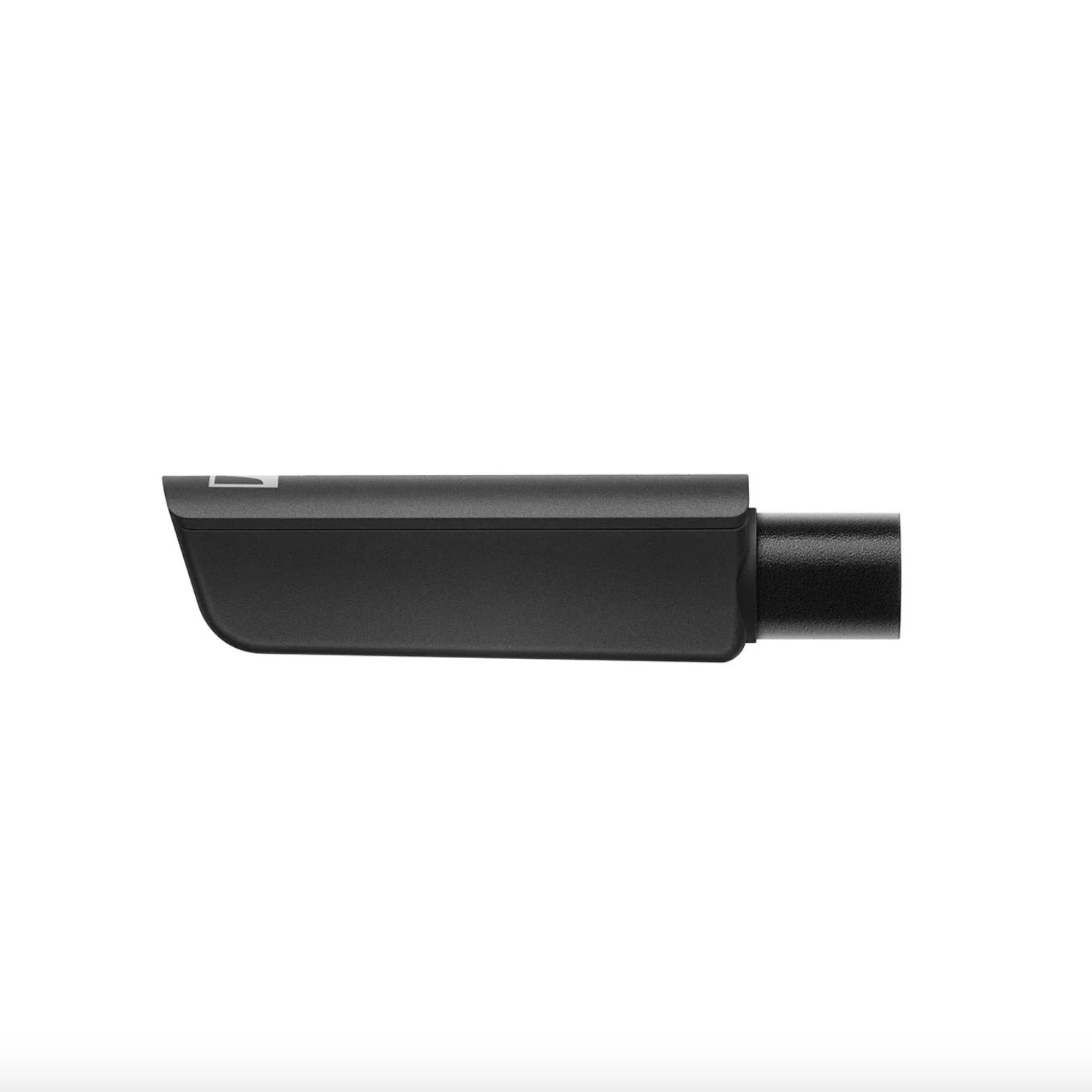

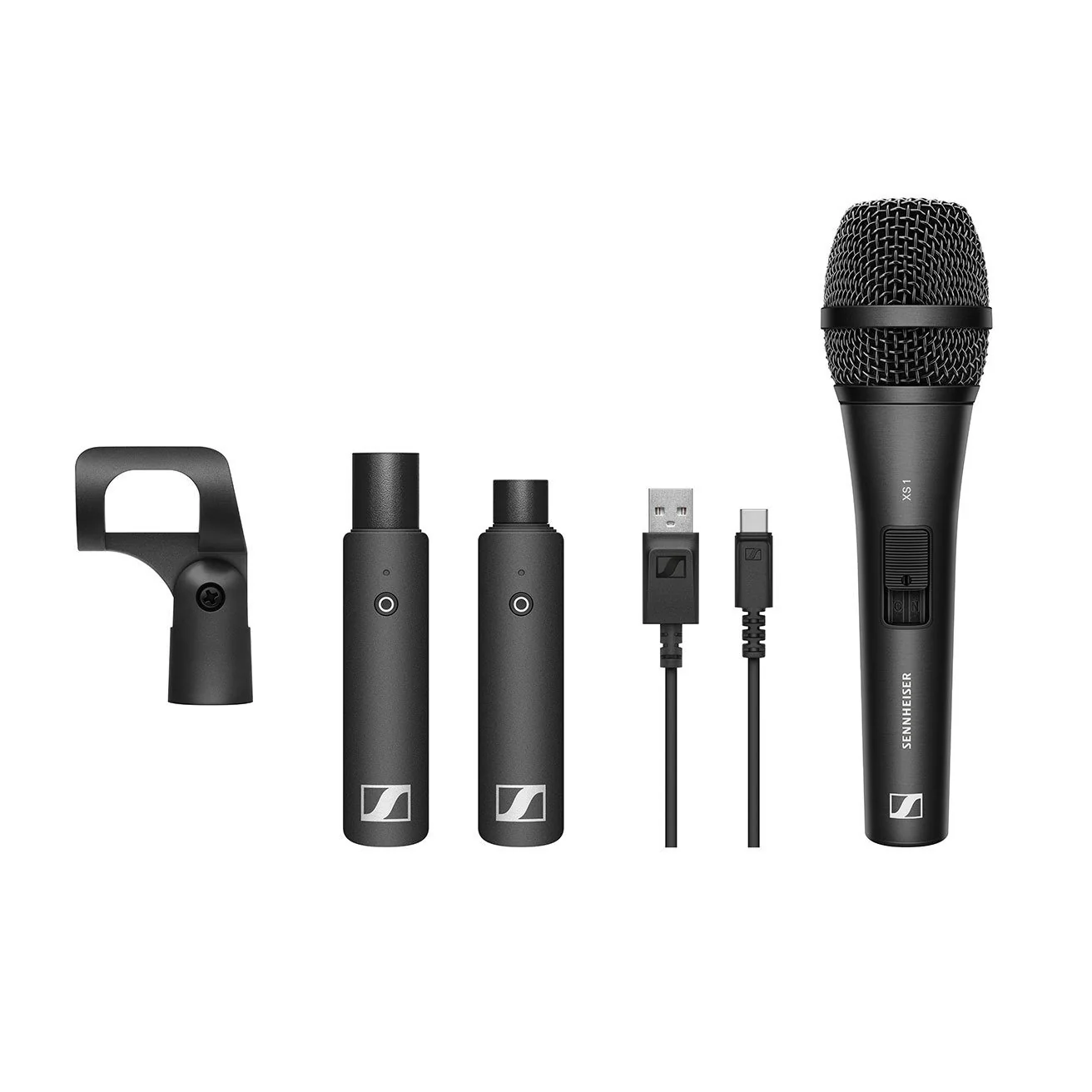

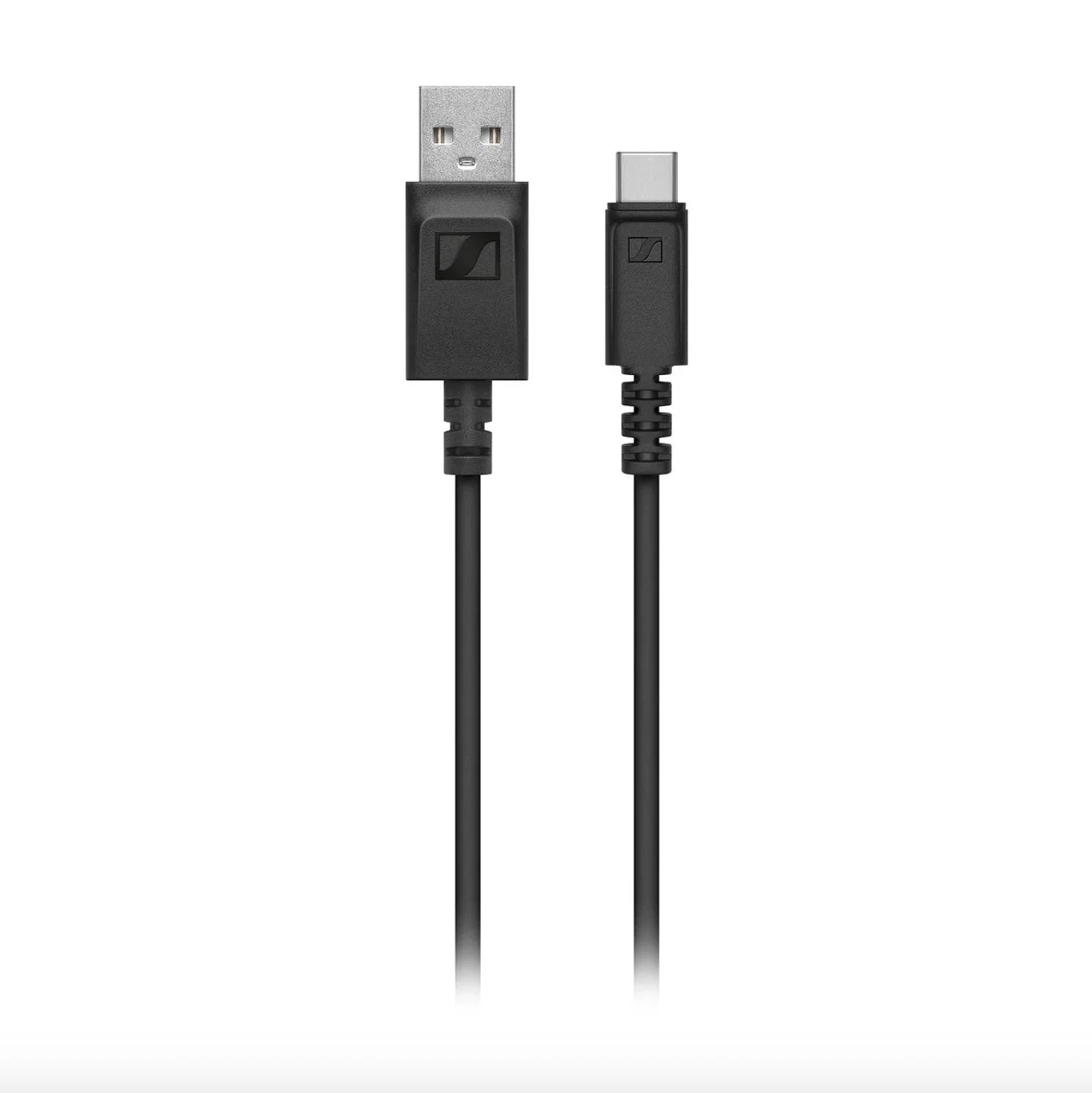

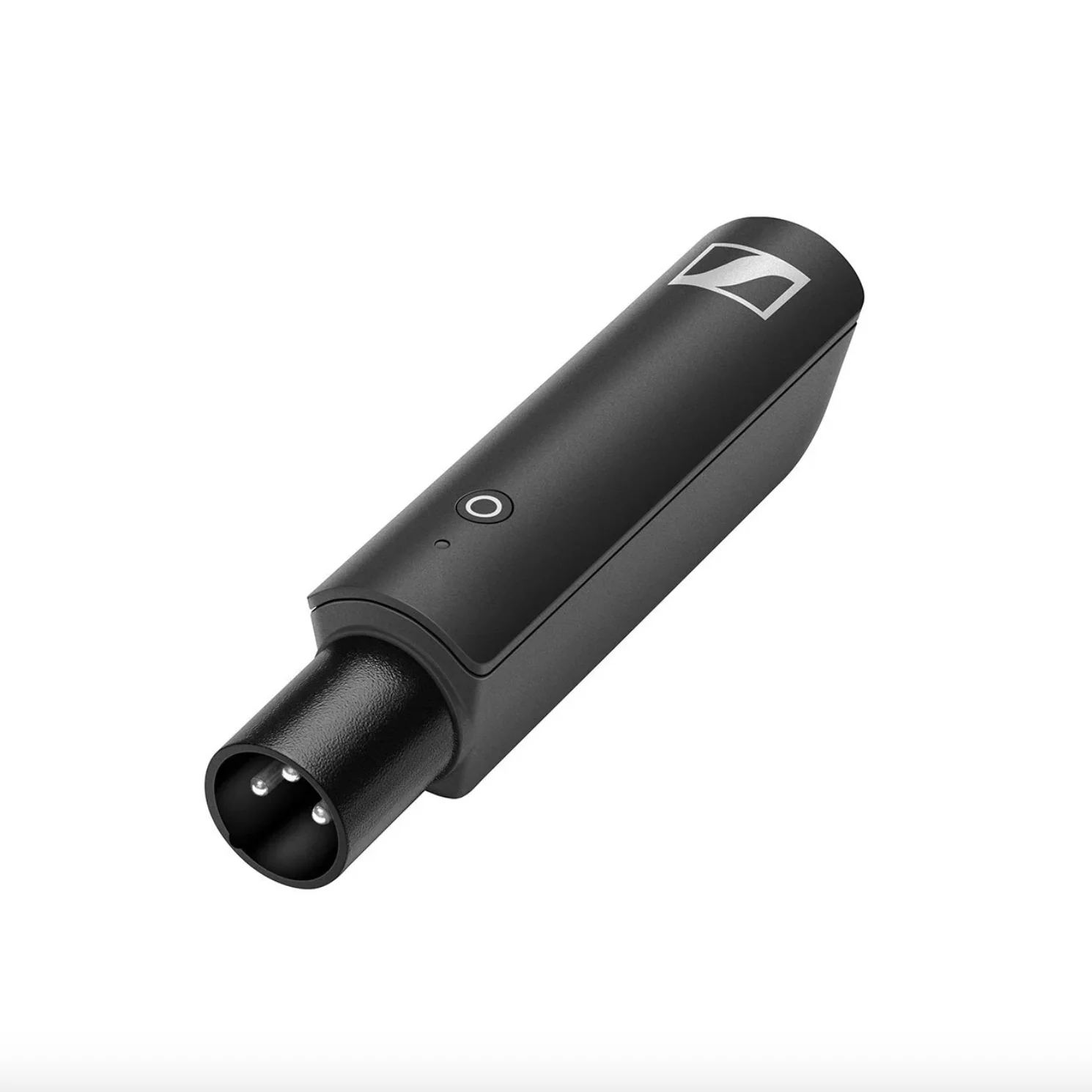

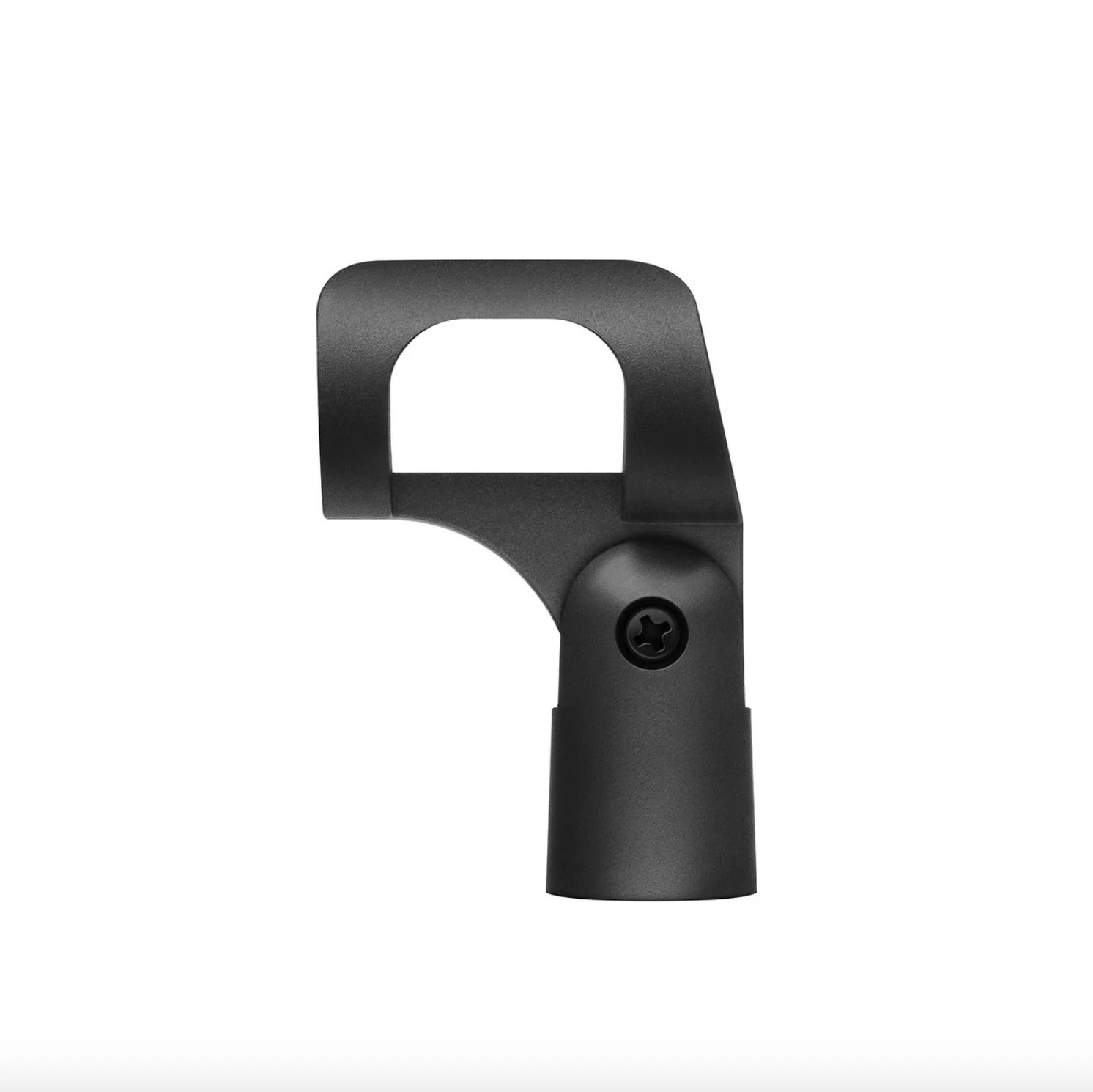

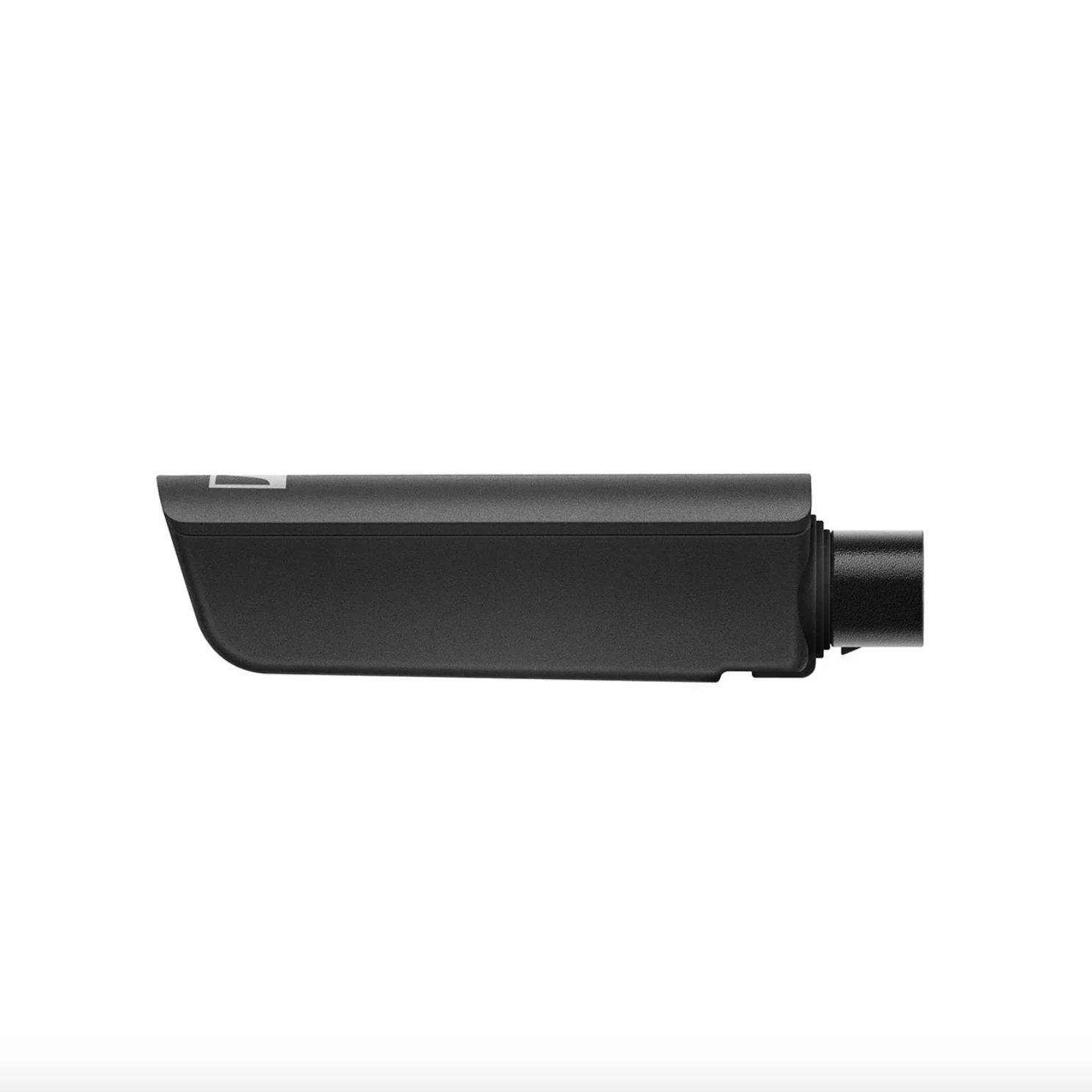

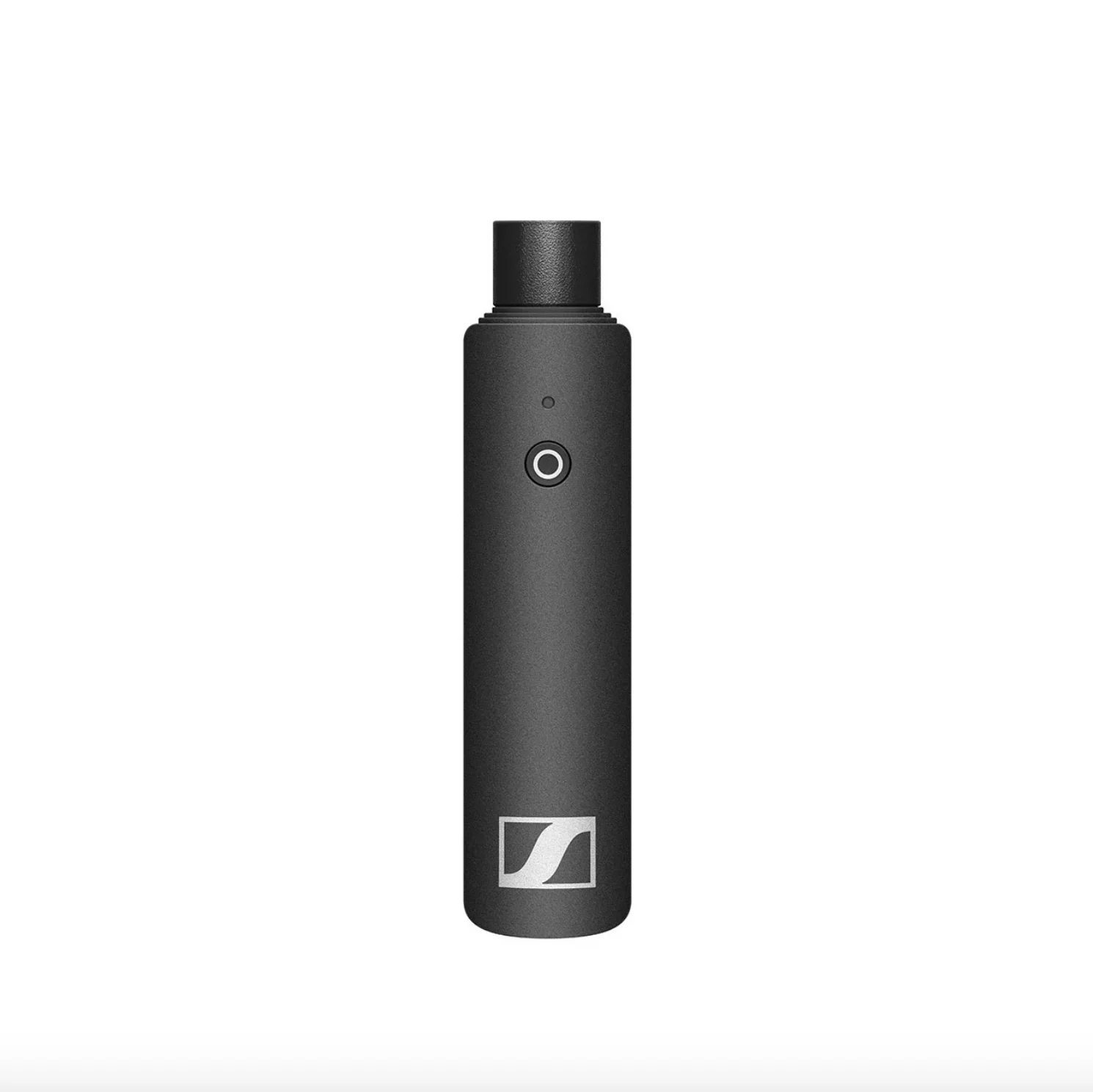

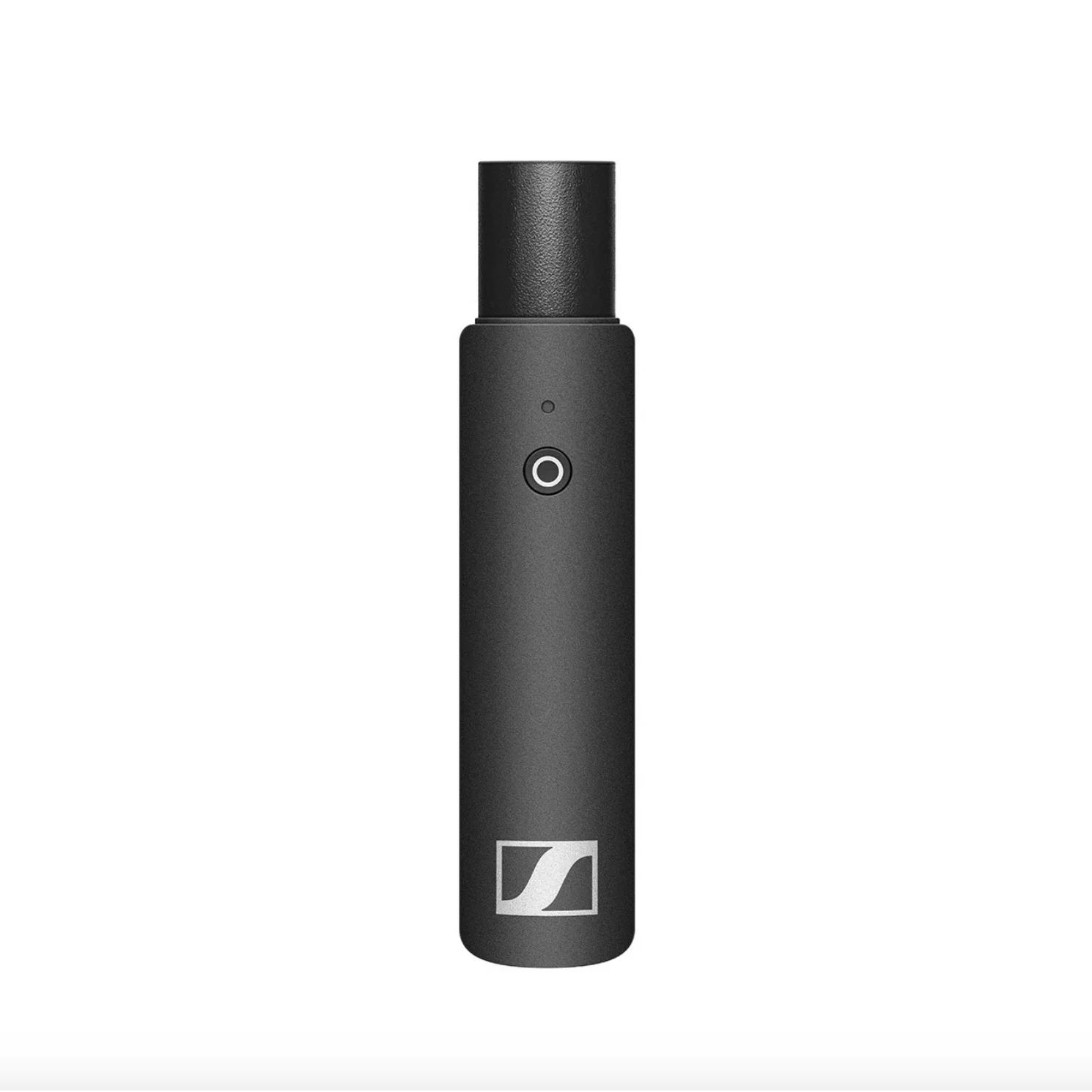

Includes: (1) XSW-D XLR female transmitter, (1) XSW-D XLR male receiver, (1) XS 1 cardioid dynamic vocal microphone, (1) mic clip, (1) USB-A to USB-C charging cable

More

Lose the cables, keep the connection

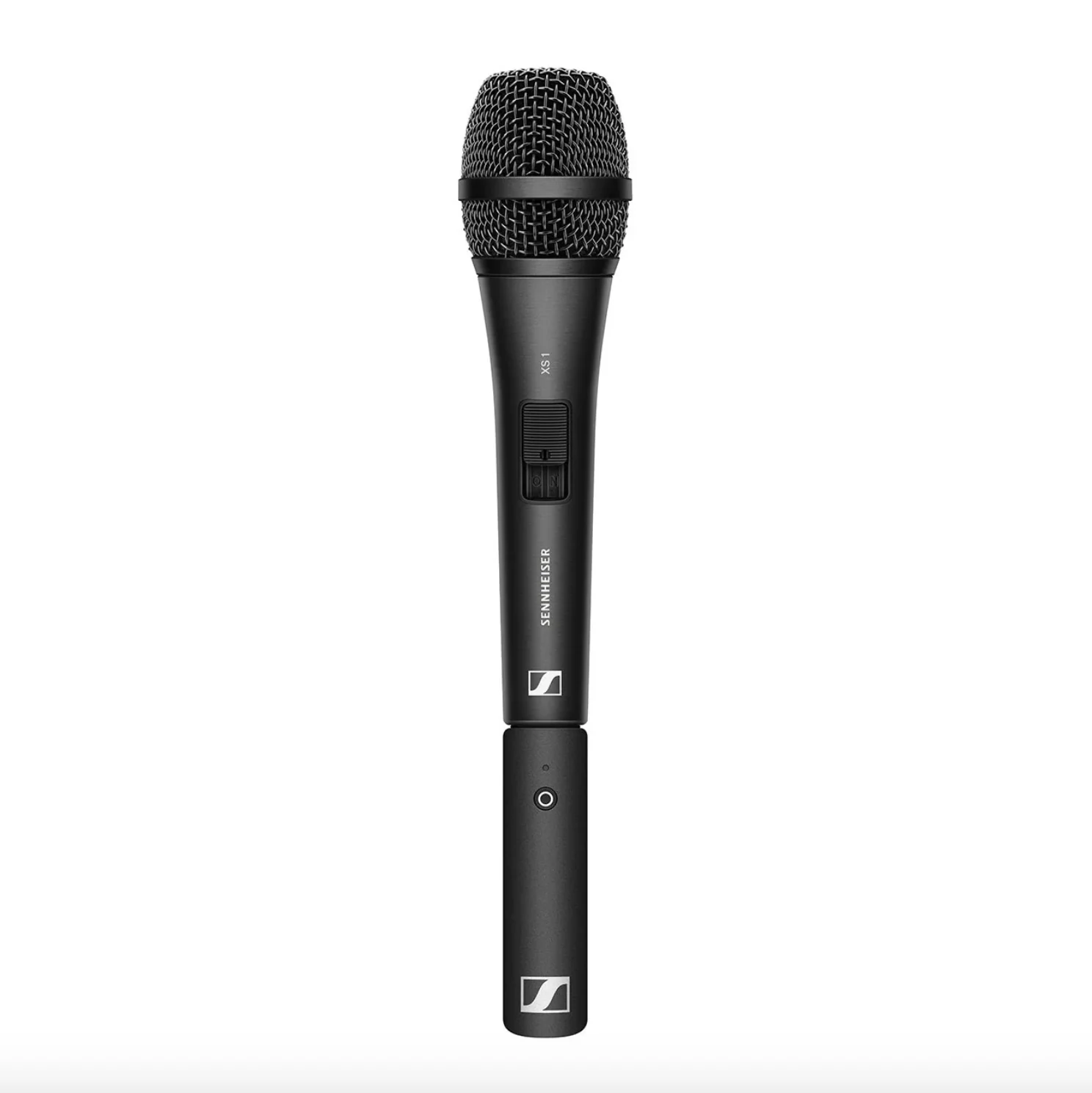

Essentially a cable replacement, XS Wireless Digital uses a 2.4 GHz transmission to create a wireless peer-to-peer connection. Simply plug the transmitter into any dynamic XLR vocal mic and the receiver into your mixer or active PA speaker. As soon as you see the green light, you’re good to go. As a liberating solution for the musician moving about on stage, or a convenient approach to the rehearsal room, this wireless tool empowers your inner creativity by allowing you to roam free.

As easy as it gets
Each XS Wireless Digital transmitter and receiver have only one button. Press to power up and link simultaneously, click once to mute, and hold to power down. What’s more, they each feature a single LED that indicates when your connection is secure or when it’s time to charge the battery. There are no menus to fuss with or settings to worry about. It’s almost as easy as plugging in a cable, minus the cable part.

Digital for worldwide operation
XS Wireless Digital uses the same 2.4 GHz frequency as WiFi allowing for license free operation worldwide. There is no need to scan for available frequencies as the system automatically does it for you. This means you can take XSW-D with you wherever you go without fear of static interference or dropouts. Just turn it on and start the show.

Features

• One touch ease-of-use
• 2.4 GHz digital transmission for worldwide operation
• 75m range (250ft) in optimal conditions
• Up to 5 hours battery life on a single charge
• Switch between multiple transmitters linked to one receiver
• Configure any combination of transmitters and receivers
• Mute from either transmitter or receiver

Specs

• Dimensions XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm
• THD, total harmonic distortion < 0.1 %
• Charging time typ. 3 h
• Audio output max. 12 dBu
• Operating temperature -10 °C to +55 °C (14 °F to 131 °F)
• Signal-to-noise ratio ≥ 106 dB
• Operating time up to 5 h
• Modulation GFSK with TDMA
• Battery Specification Li-Ion
• Capacity 850 mAh
• Codecs aptX® Live
• Frequency range 2,400 - 2,483.5MHz
• Max. Input voltage typ. 5.0 V
• Transmission power max. 10 mW
• Voltage 3.7 V
• Operating relative humidity 95 % (non-condensing)
• Latency < 4 ms
• Temperature Range 0 °C - 60 °C (32 °F - 140 °F)
• Audio frequency response
• 3.5 mm Jack/XLR: 80 - 18,000 Hz
• 6.3 mm Jack: 10 - 18,000 Hz
